LXSZ IIM type RF Prepaid Water Meter Module

FOB Reference Price:Get Latest Price
$15.00 - $30.00 / Pieces | 100 Piece/Pieces (Min. Order)
Report Suspicious Activity
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Laison Water Meter
Model Number:
Supply Ability
Supply Ability:
500000 Piece/Pieces per Year
Packaging & Delivery
Packaging Details
Foam inside one by one sequentially, make them stable
Shanghai or Ningbo
Lead Time :
Within two month after customization


LXSZ IIM type RF Prepaid Water Meter Module


The RF Card Prepaid Meter module is developed by Laison Technology Co., which is suitable for the prepaid water Meter and prepaid Gas Meter, it's popular used by the manufacturers. The main functions of the modules including:

1.        Main functions
1.1 Step tariff
1.2 Friendly time period management(Duty off time, holiday, weekend non-switch off setting)
1.3 Monthly credit limit
1.4 Water recharge
1.5 Anti-storage credit
1.6 Water consumption accumulation
1.7 Monthly data frozen
1.8 Warning value, Overdraft value setting
1.9 Anti magnetic field
1.10 Low battery capacity warning
1.11 Data auto save when battery use up
1.12 LED,LCD and buzzer show indication
1.13 Meter parameters checking by check card or user card


2.        Module features
Low Power Consumption, Static working current≤ 5ua
Long Lifetime, ≥6 years(under the condition of 3.6V 1.5A)
Optional Pulse Equivalent:0.1/0.01m3


Working TemperatureC-10~+40
Storage TemperatureC-10~+55
Relative Humidity ≤93%
Rated Working VoltageV3.3~12 (Recommend:3.6V)
Static Working CurrentUa≤ 5
Max. Working Current of valvemA≤300
Service Lifeyear≥6(3.6V 1.5A)
Pulse equivalentm 30.01/0.1
LCDm 39999.99/99999.9/999999

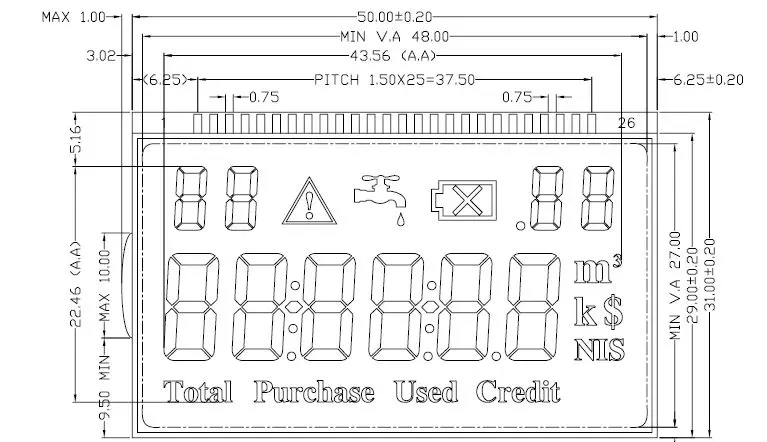

 3.    LCD Design Drawing





Hangzhou Laison Technology Co., Ltd.
Add: Zhejiang University National Science Park,
No. 525 Xixi Road, Hangzhou, China


Tel: +86 571 89715425

Fax: +86 571 89715426

Gmail mailbox: Laisontech.alex(@)gmail.com

Skype: alexliting

Website: www.laisontech.com
